IEC Type 2 7KW AC Electric Vehicle Charger Portable Ev Charging Station 3 Phase 32A

Name: IEC Type 2 7KW AC Electric Vehicle Charger Portable Ev Charging Station 3 Phase 32A
Brand: HEIU
Price: 1 USD

Wholesale IEC Type 2 7KW AC Electric Vehicle Charger Portable Ev Charging Station 3 Phase 32A from china suppliers

Brand Name : HEIU

Model Number : T2-CEE-32A

Certification : TUV,CE,RoHS

Place of Origin : China

MOQ : sample accepted

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000pcs/Day

Delivery Time : 10-15 days

Packaging Details : Carton Box, Pallet

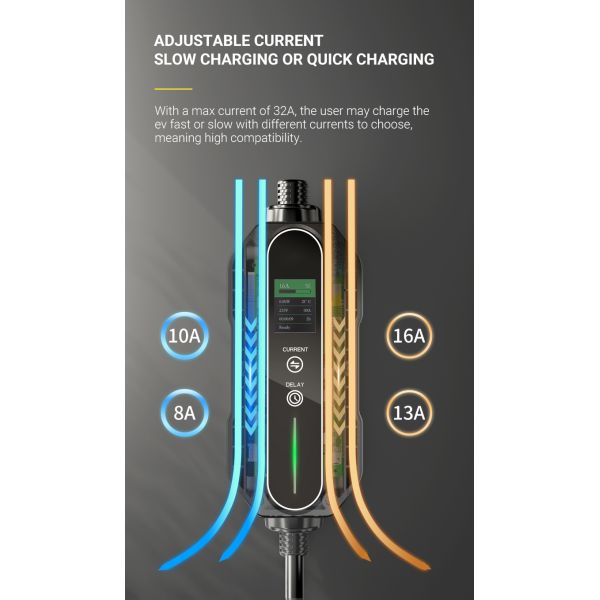

Current : 10-16-20-24-32A

Charging Cable Length : 6m as standard (Customized length available)

Function : current switch, Large touch screen,screen display, Voltage Monitoring

Product Weight : 3KG

Interface Standard : IEC 61851

Charging standard : Type2(European Standard)

Contact Now

IEC Charger Type 2 32A 3 Phase 7KW AC Electric Vehicle Charger Portable Ev Charging Station

Highlights:

Compact Car Charger
The charge cable measures 5m from plug to plug. It is a compact portable EV charging station that is an ideal solution for low-cost charging in your garage or to keep in the trunk of your EV for charging at work or on trips.
Over Temperature Protection
When the internal temperature of the control box exceeds 85°C, enter over-temperature protection, and stop charging. It will recover charging after the temperature drops to 65°C.
Detailed LED Display
Easily read the charging temperature, current, time and power status in kWh on the convenient screen.
High Security
Our EV charger adopts High Strength ABS material, which has better quality and high durability. Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, and overheating protection.
Applicable Vehicles
There are two different charging standards for EVs, Type 1 for US and Type 2 for EU. Please make sure you are choosing the correct charging plug for your EV.

Characteristic:

General	Brand: HEIU Type: Electric Car Charger Color: Black
Specification	Service life: >10000 times Insulation resistance: > 1000M ohm Terminal temperature rise: <50K Withstand voltage: 2000V Contact impedance: 0.5mohm Max Vibration resistance: Meet JDQ 53.3 requirements Working temperature: -30°C ~ 50°C Shell Material: Thermo Plastic (Insulator inflammability UL94 V0) Contact Pin: Copper alloy, silver Sealing gasket: Rubber Inlet cable spec: 32.5mm2 Outlet cable spec: 32.5mm2 2*0.5mm2 Cable diameter: 12(mm) / 0.47(in) Certificate: TUV/ RoHs Power plug: CEE 3Pins EV charging plug: Type 2 or type 1 Current: 10A 16A 20A 24A 32A adjustable Voltage: AC 110V-250V Power: max 7.4 kw Length: 5m (16.4ft) Cable: Black straight cable Controller type: LCD screen Protection level: IP66
Size	Product Size(L): 5m Package Size(L x W x H): 34 x 35 x 12 cm
